PIXAR SPACE1 Electric Bike

FEATURES

Motor: 500W high-speed brushless hub motor (peaks up to 750W)

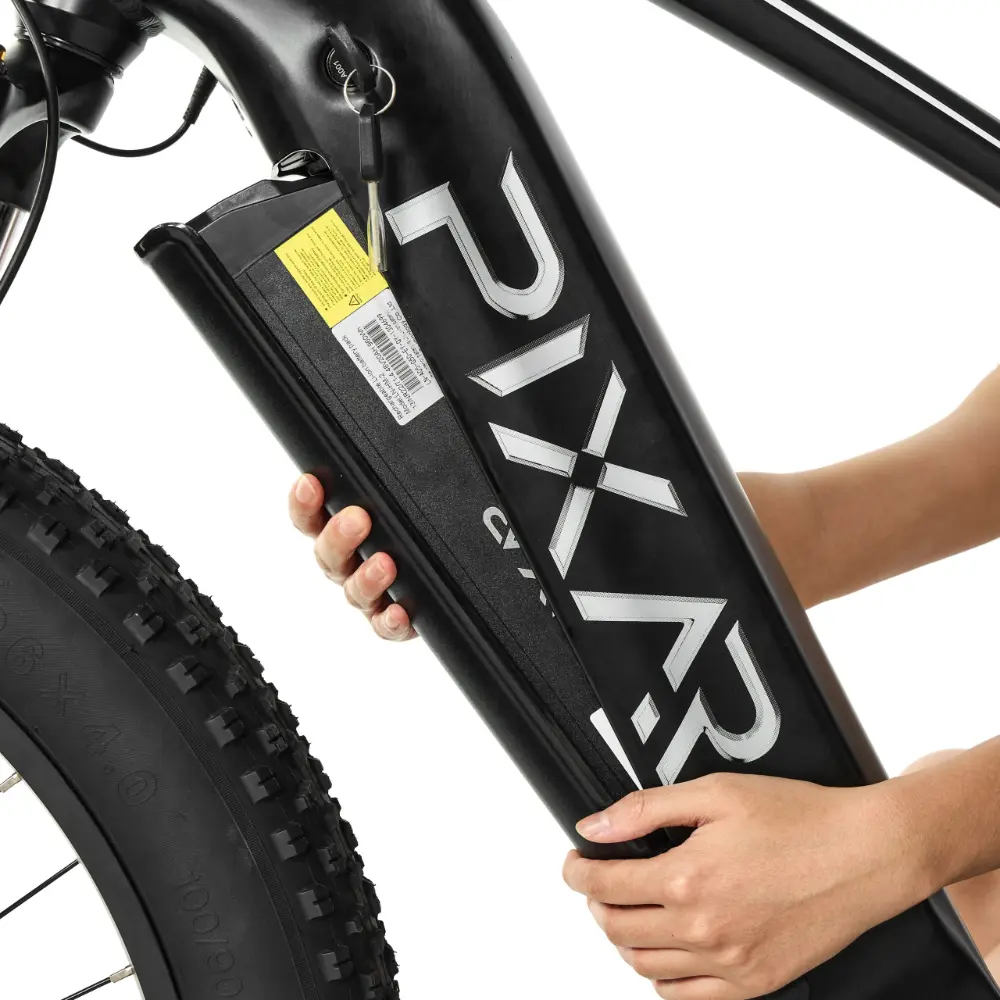

Battery: 48V 20Ah removable lithium battery (EVE/Samsung cells), ~960Wh capacity

Range: 60–100 km per charge, depending on terrain and assist mode

Top Speed: 25 km/h (adjustable up to ~32 km/h / 20 mph)

Frame Material: 6061 aluminum alloy

Net Weight: 31.7 kg

Dimensions: 205 × 72 × 115 cm (L × W × H)

Payload Capacity: Up to 120 kg

Waterproof Rating: IP54

Tires: 26 × 4.0-inch Chaoyang fat tires (all-terrain: snow, sand, city roads)

Front Suspension: Hydraulic + spring fork with 100 mm travel, adjustable stiffness via lockout knob

Rear Suspension: Dual suspension system for smoother rides

Gears: Shimano 7-speed shifter

Pedal Assist: 5 PAS levels

Throttle: Twist throttle

Brakes: Hydraulic disc brakes (front & rear)

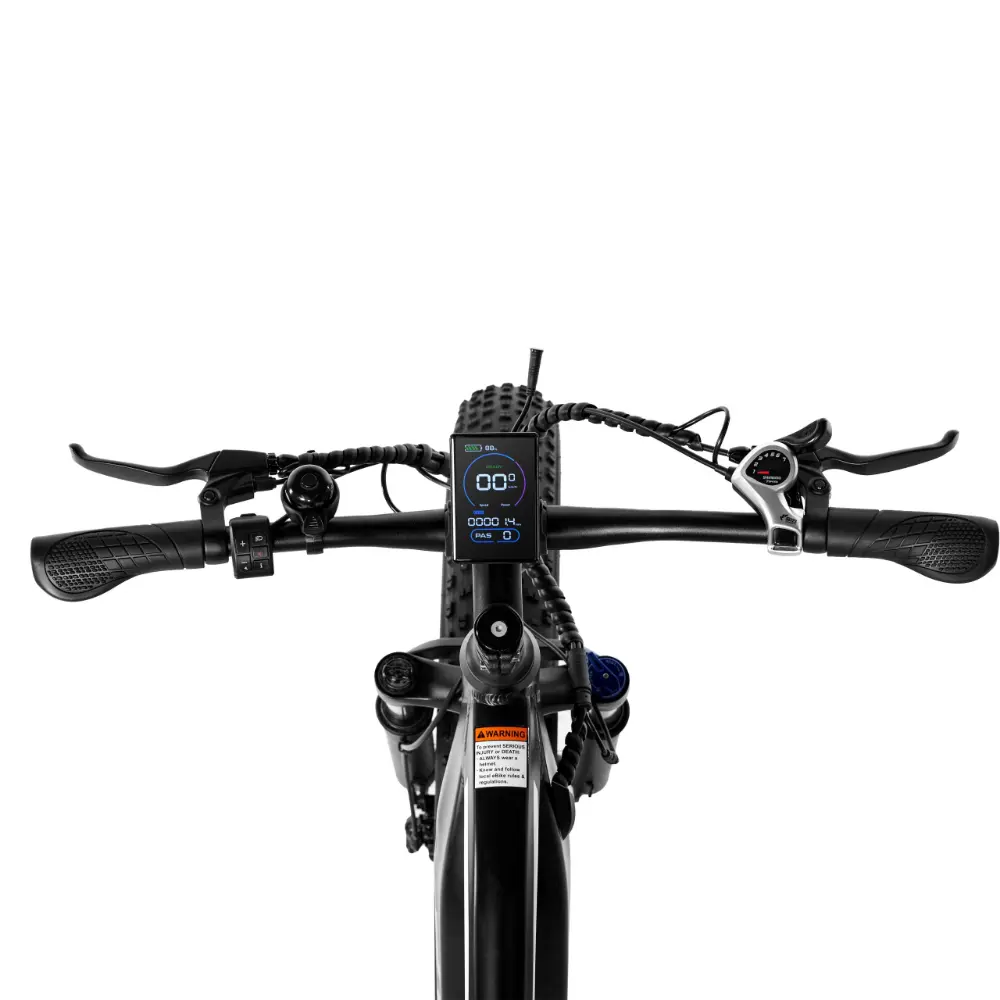

Display: Smart LCD showing speed, battery, mileage, PAS mode

Lighting: Front LED headlight (30-lux beam, glare-free XTL technology), Rear safety light
