FEATURES
1056W Peak Brushless Motor
Powered by a 750W brushless rear hub motor (1056W peak).75Nm of torque delivers plenty of power, faster starting speeds, and higher hill climbing ability. In electric-only throttle mode of Vitilan U3, the top speed is up to 45km/H, giving you a silky-smooth ride!
48V 13ah High-capacity Removable Battery
Long-lasting performance with a 48V 13ah removable battery that can be easily installed and removed for charging when you need it. You can ride 48-73km in 5-6 hours per charge.
Front Fork And Seat post Suspension
Vitilan U3 allows you to tackle uneven surfaces and rough terrain with confidence, a smooth and comfortable ride welcomes easy riding
LCD Display
Tracking your speed, pedal assist level, battery level and other ride essentials ensures you stay informed and in control throughout your journey.
20″*3″ Spoked Wheels
The 20*3.0 fat tires with granular pattern grip the ground more powerfully and anti-skid
Pedal Assist & Throttle
1-5 level pedal assist saving time and energy, even without hard pedaling, you can still keep up with the traffic easily,no worry of rush hour and being late for work anymore.
Shimano 7 Speed
You can choose different gears according to the road conditions, giving you a more comfortable riding experience.
Simple and easy to fold design
Fold for storage and unfold the bike when you’re ready to hit the streets or ride.
160 mm Mechanical Brake
Provides reliable braking power to give you peace of mind when travelling over different terrains.
Front and rear lights
Illuminates and improves visibility on the road ahead in low light and dark conditions.
Compare
| Model | U3 | U7 2.0 |
|---|---|---|
| Max Range | 48 km(pure electric) /73 km(pedal assist) |
48 km(pure electric) /73 km(pedal assist) |
| Max Speed | 45km/h | 45km/h |
| Battery Capacity | 48V 13Ah | SAM-SUNG 48V 20Ah |
| Gears | 7-Speed Shimano | 7-Speed Shimano |
| Tire | CHAOYANG 20″ x 3″ tires | CST 20″ x 4″ Puncture-Proof Fat tires |
| Brakes | 160MM Mechanical Disc Brakes | 180mm Hydraulic Disc Brake |
| Motor | 750W(Peak Motor: 1056W) | 750W(Peak Motor: 1200W) |
| Display | LCD | S2+ dsiplay |
| Foldable | YES | YES |
| Suspension | Dual Suspension | Dual Suspension |
| Pedal Assist Mode | 1-5 Level Pedal Assist | 1-5 Level Pedal Assist |
| Suggested Rider Height | 5’3″-6’5″ | 5’3″-6’5″ |
| Charger | 54.6V 2.0A | 54.6V 3.0A |
| Weight | 29.8 KG | 32.9 KG |
| Seat To Floor | Minimum 34.25″ / Maximum 39.3″ |
Minimum 34.25″ /Maximum 39.3″ |
| Suggested Rider Height | 5’3″-6’5″ | 5’3″-6’5″ |
| Warranty | 12 Months | 18 Months |
| Best For | All Terrain | All Terrain |
| Throttle | Twist Grip Throttle | Twist Grip Throttle |
- A: Total length 66.92″
- B :Handlebar height 49.21″
- C: Rear shelf height 24.4”
- D: Lowest seat to floor 33.46″
- E: Limit height of seat 38.18″
- F: Top tube length 22.83″
- G: Frame to ground height 13.58”
- H: Handlebar length 24.4″
- І: Head tube length 16.73″
- J: Wheelbase 49.21″
- A Height: 35.82 inches (910mm)
- B Length: 30.51inches (775mm)
- C Width: 16.14 inches (410mm)
Specification:
| Feature | Specification |
| Battery | 48V 13Ah |
| Range | 48-73km |
| Hub Motor | 1056W Brushless Gear Motor |
| Total Payload Capacity | 330 lbs |
| Suspension | With Locking and Adjustment Functions |
| Max Speed | 45km/h |
| Bell/Horn | Electric Horn |
| Throttle | Twist Grip |
| IP Level | IPX6 |
| Recommended Rider Heights | 5’3″ ~ 6’5″ |
| Tires | 20″ x 3″ Fat Tires |
| Gear Shifting System | Shimano 7 Speed Gear |
| Pedal Assist | Intelligent 0~5 Level Pedal Assist |
| Frame Material | Aluminum |
| Controller | 48V / 22A |
| Rear Light | Signal Turn Light/48V LED Light |
| Display | 48V LCD Display |
| Fender | Included |
| Color | Green, Black, White |
|---|---|

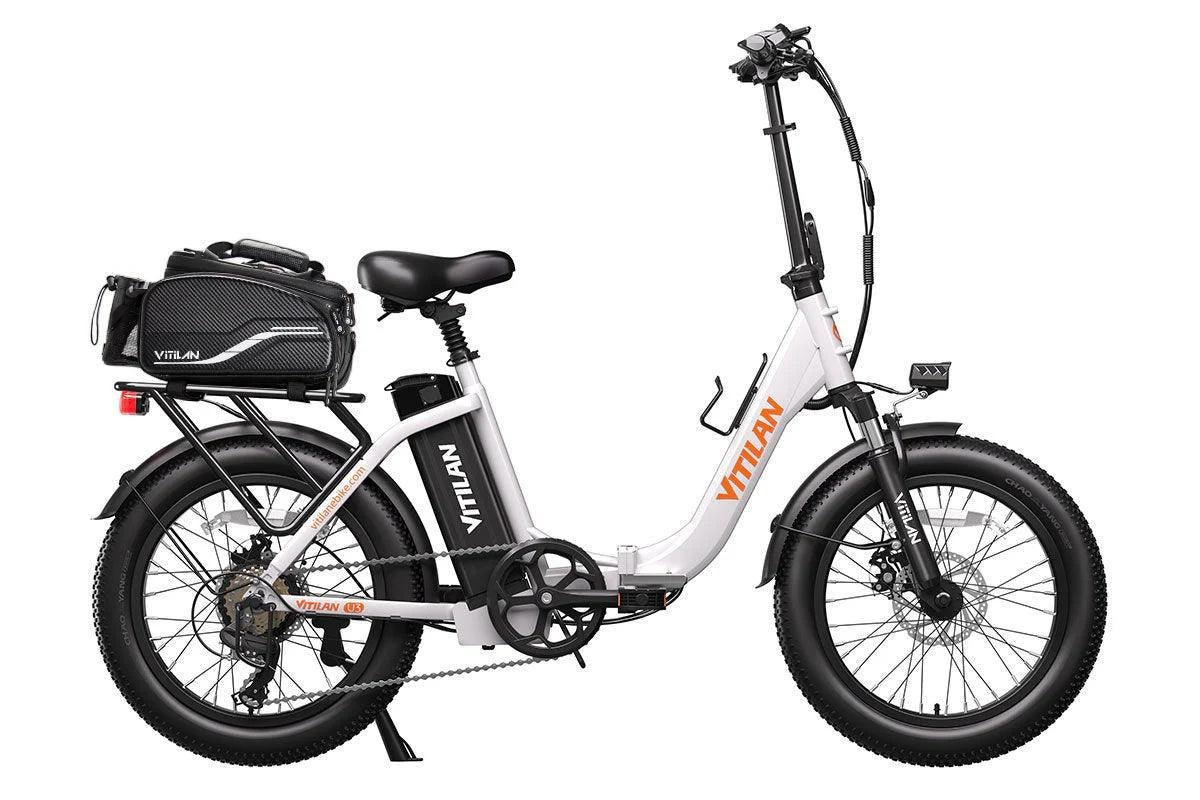

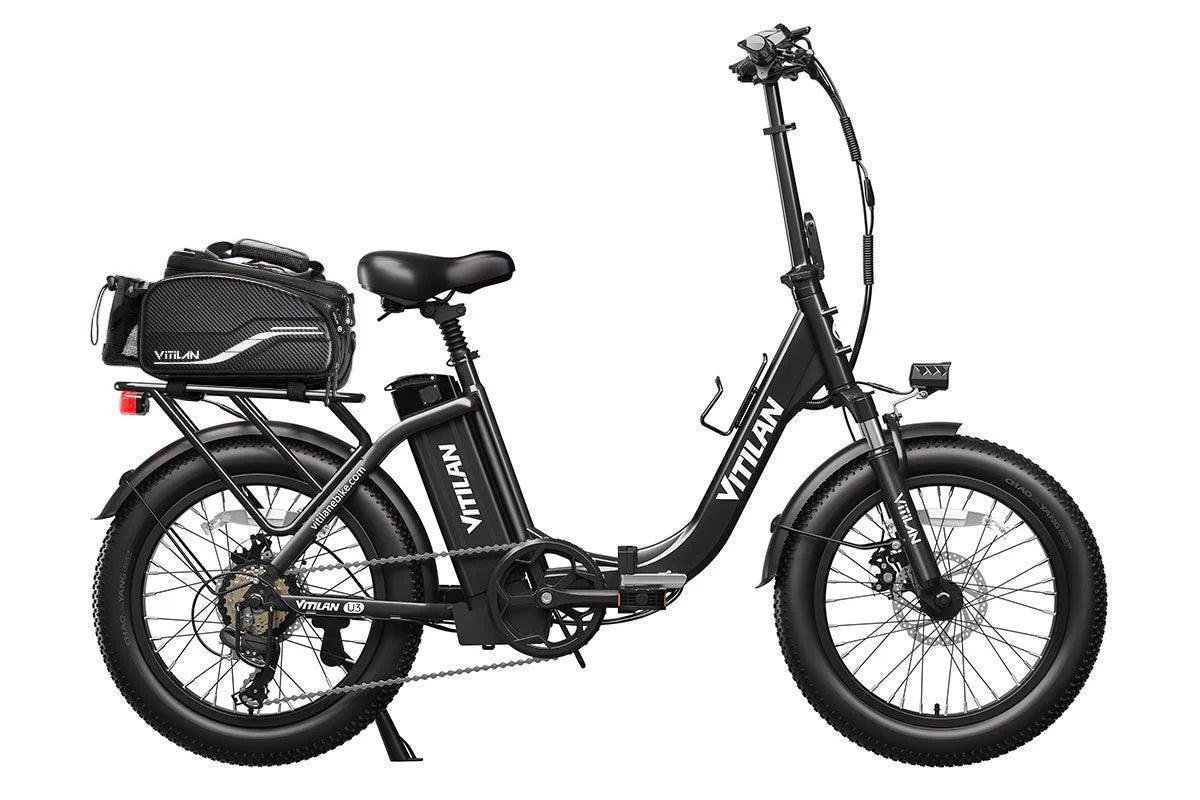

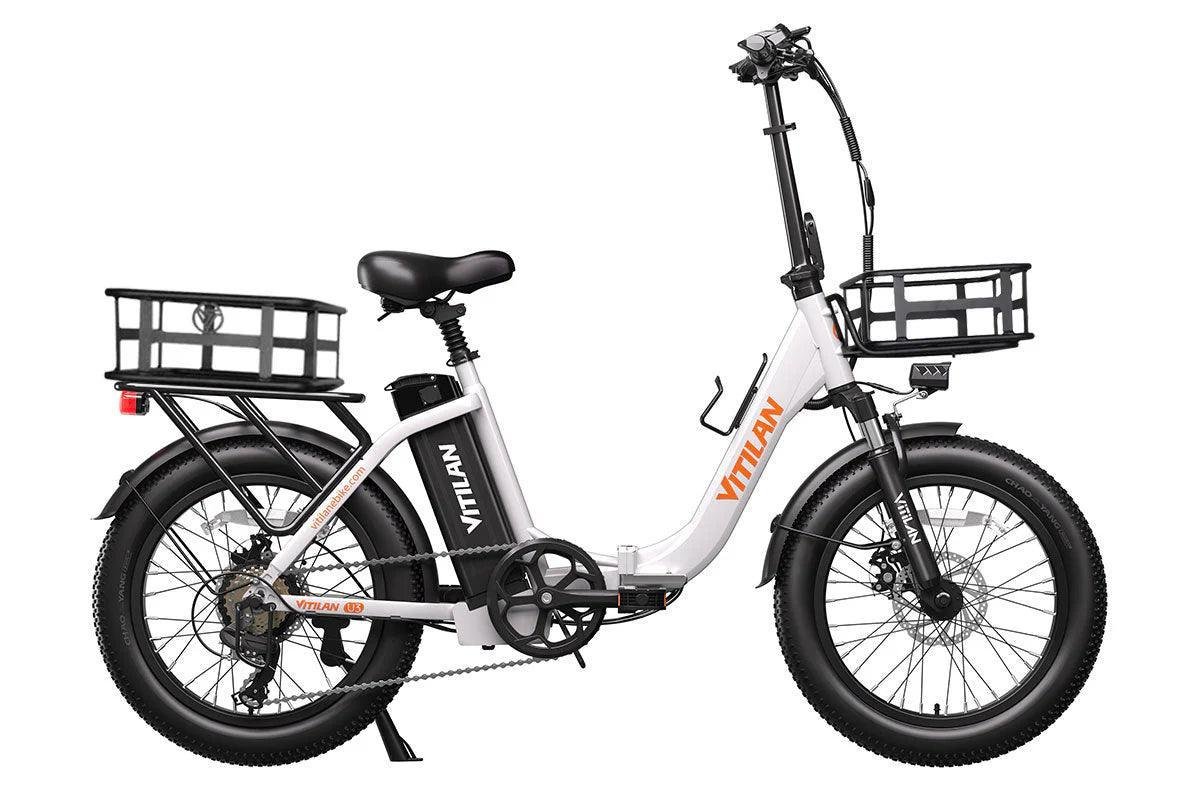

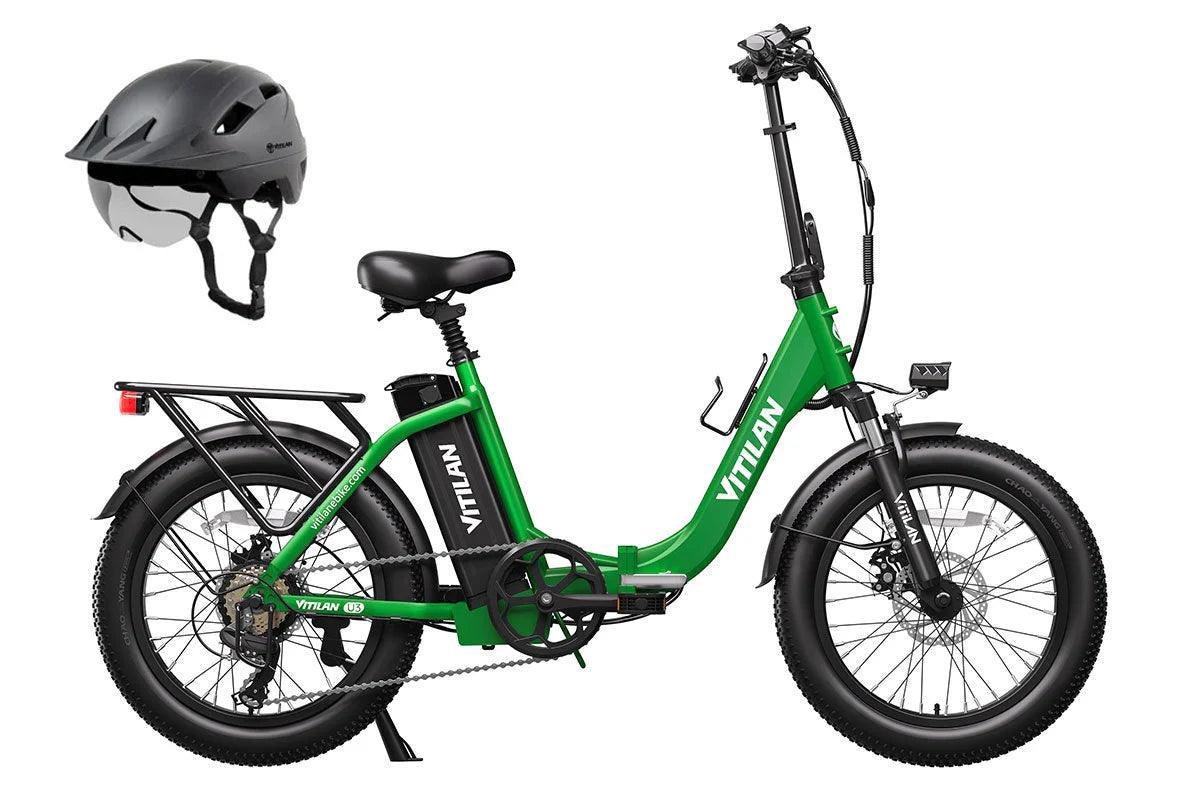

| Version | Bike Only, Bike with Helmet, Bike With Waterproof Bag, Bike With Front and Rear Baskets |
